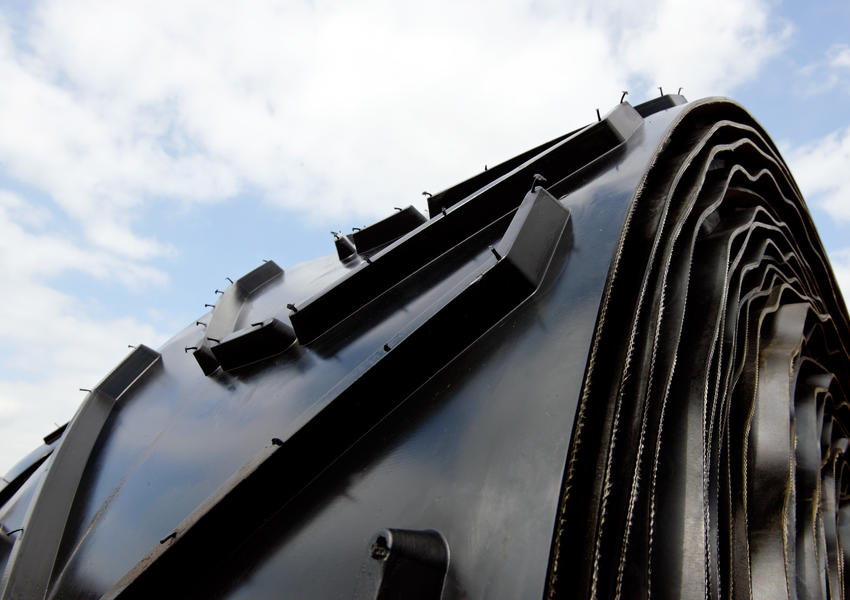

Chevron Conveyor Belting

We offer a full range of sizes with a variety of pattern types, to suit most applications. All Cannoflex chevron belts have the advantage of integrally moulded cleats as part of the top cover during the manufacturing process.

Cannoflex chevron belting is made with E.P. fabric plies. The top and bottom are provided with abrasion resistant rubber covers to DIN 22102 and BS 409. All belts are suitable for jointing by vulcanising or by mechanical belt fasteners.

Used mainly for inclined conveyors of more than 18 degree angles, our C15 range can carry materials up to inclines of 30°, and our C25 range up to 40°.

New Wider Chevron Conveyor Belting:

Over and above the normal widths of 400-1200mm wide with various specifications 15 + 25mm high chevron or cleats, we now stock new widths from 1200-1600mm, with the new pattern width of 1000mm on base belts 315/3 – 500/3 – 630/4

COR-100

Temperature range of material: -25°C to +60°C

Features

A moderately oil resistant compound designed for applications where some oily chemical conditions are found.

Suitable for types of mineral, heavy oil, Barbolin rust preventative oil, light oil, neuter oil, oil.  rolling oil, grease, machine oil, drain sewage, etc.


COR-200

Temperature range of material: -25°C to +60°C

Features

A grain and vegetable oil resistant compound that is also electrically conductive to dissipate static electricity.

Suitable for all types of animal oil, vegetable, palm, lard, fish, soya bean, sesame, cotton, rice, frying, catering, dust, excreta, sewage etc.

Canning have invested in a completely new range specifically for usage on flat or inclined slider bed conveyors which are ideal for recycling MRF’s and scrap processing applications.

New ranges are available from light to heavy-duty applications - 450/500/600/650/750/1000/1200mm wide and are available in 15 + 25mm high chevron cleat.

V6 Chevron belting is a special oil resistant belt. The patterns are designed to convey materials at inclined angles. The V-shaped  6” width chevron cleats have integrally molded cleats - overlapping 6” width cleats which maintain a smooth travel over return idlers.


• For handling materials containing light oil (MOR), heavy oil (FULL OIL), flame, heat,etc.
• Applications include aggregate, grains, sand, bark and wood chip.

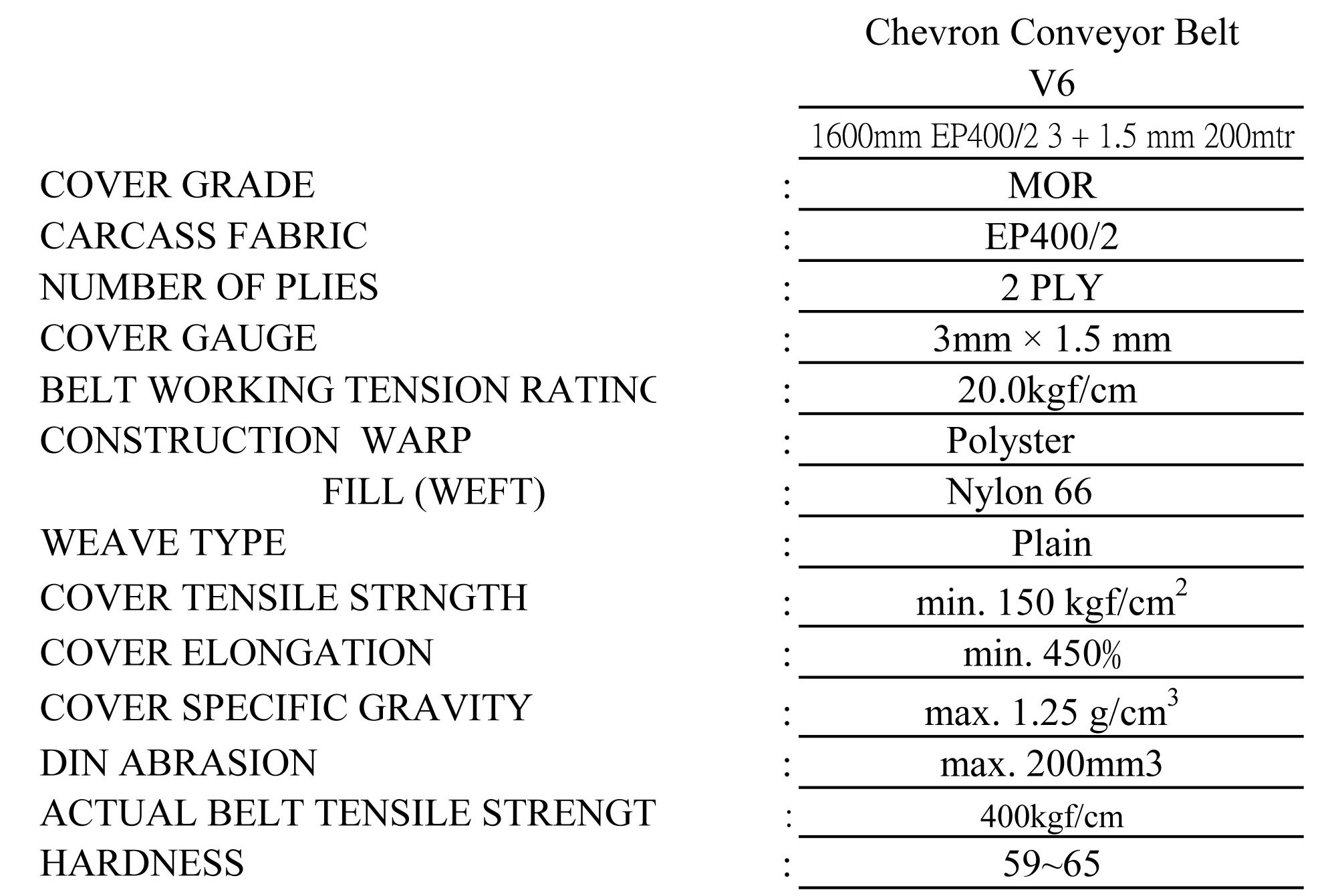

Avaliable now - 1600mm, EP400/2 3+1.5 200mtr V6 MOR
