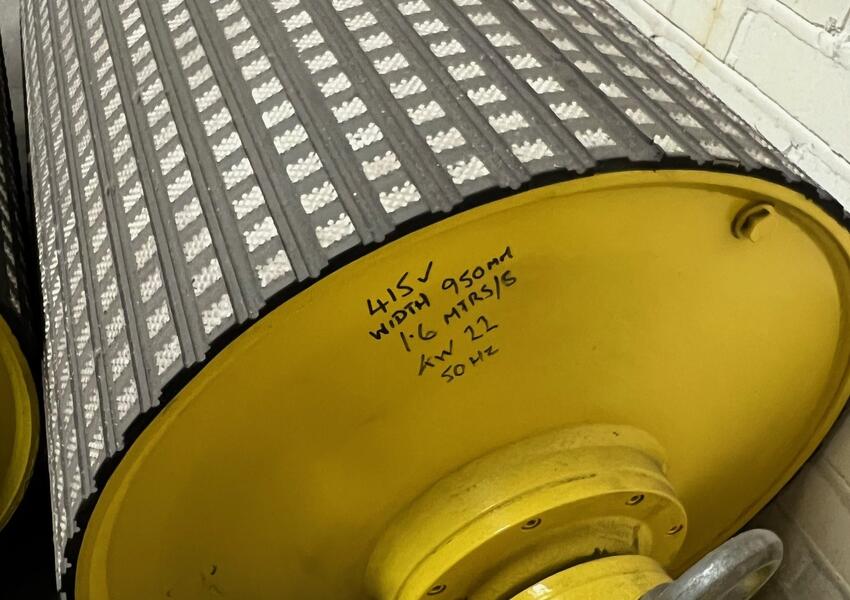

PL 18054 22kW MOTORISED DRUM 950mm face x 630mm dia Ceramic Lagged

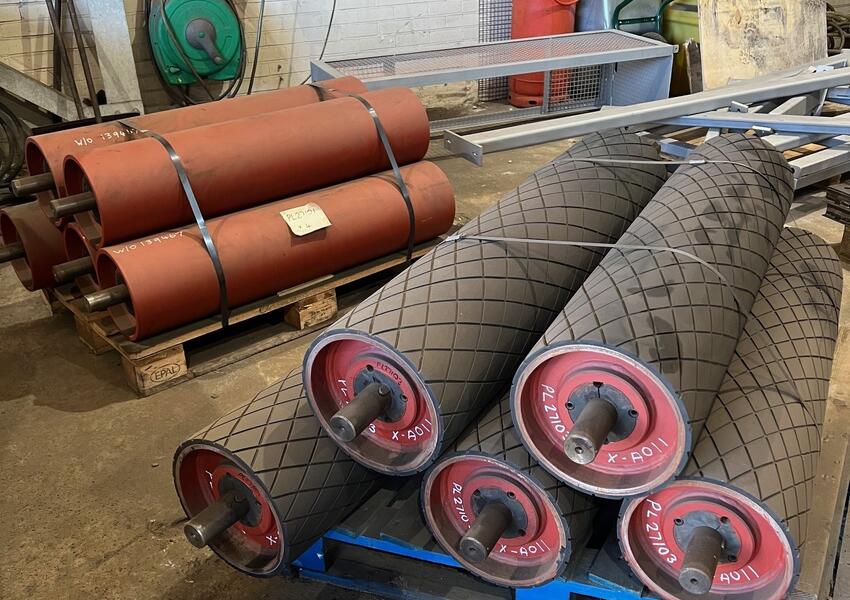

PL 207101, 27102, 27103 & 27105 Head & Tail Drums

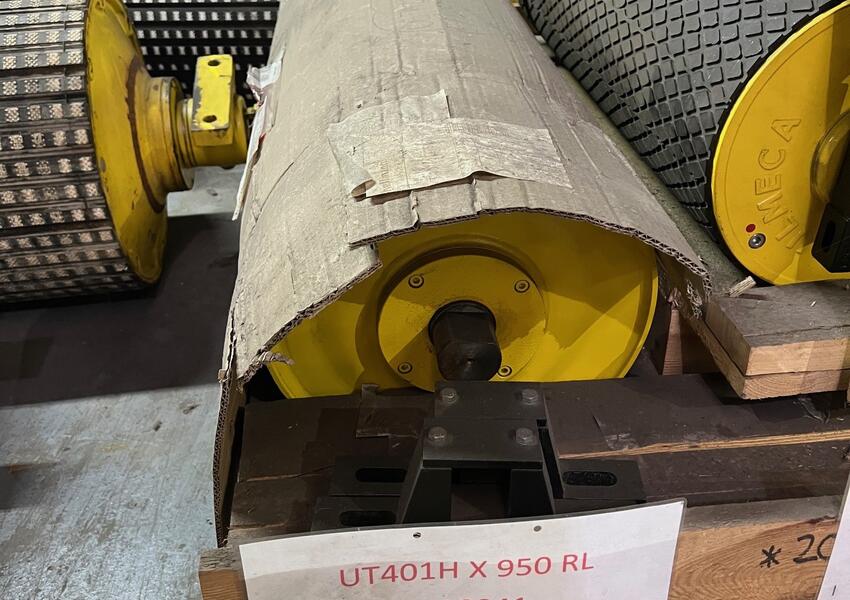

PL20841 Tail Drum 950mm face x 400mm dia

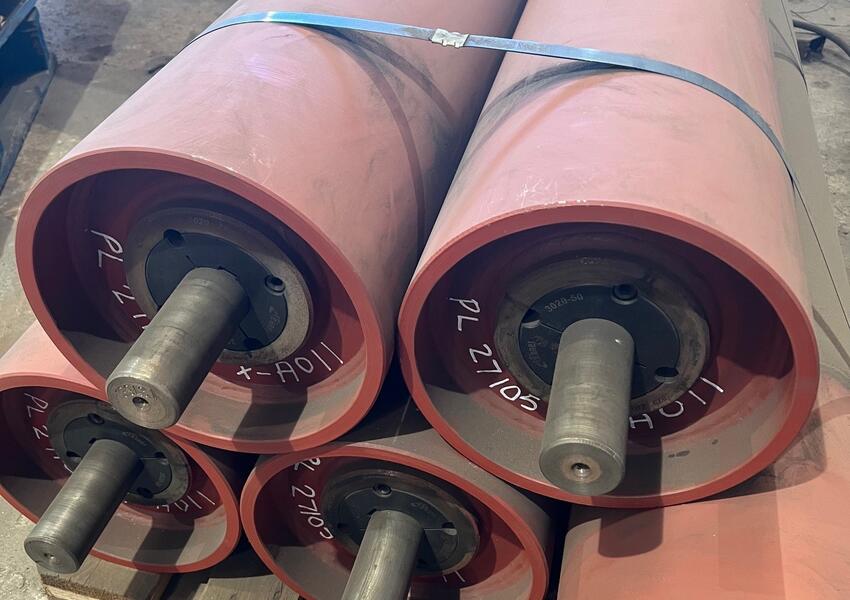

Pl27101 Tail Drums 1140mm x 273mm 4 off & PL27105 Tail Drum 1340mm x 273mm dia 1 off
Pl27101 Tail Drums 1140mm x 273mm 4 off & PL27105 Tail Drum 1340mm x 273mm dia 1 off

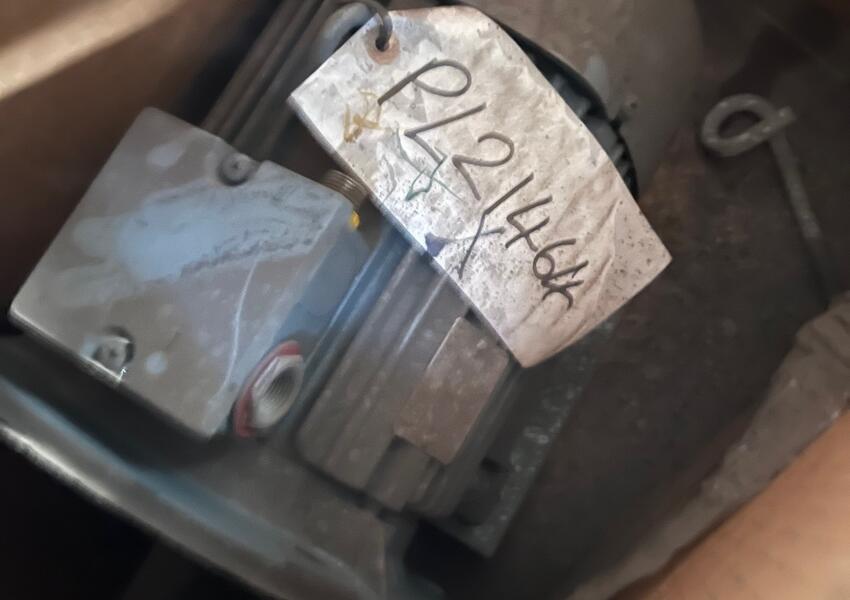

PL21463 3kW WEG motor

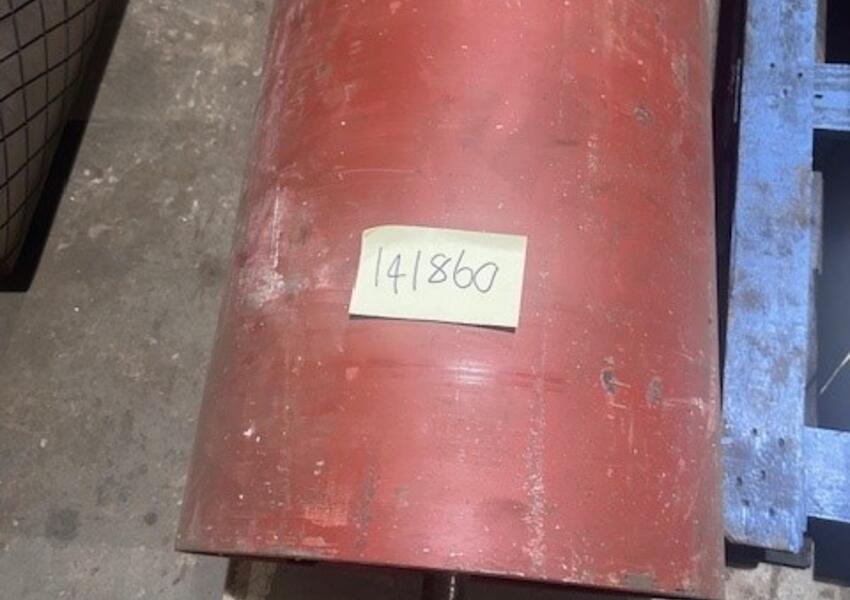

PL 141860 Tail Drum 600mm face x 508mm dia

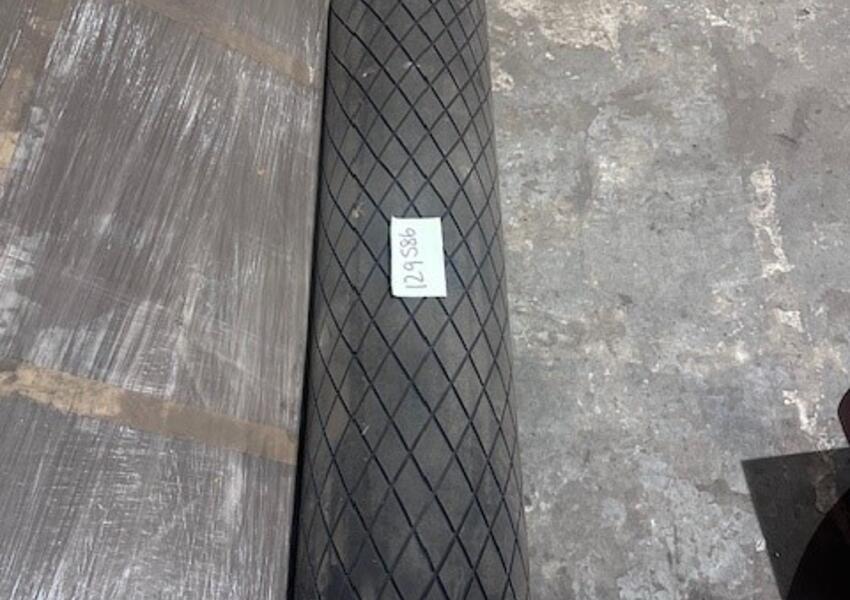

REF 129586 HEAD DRUM 273mm dia x 1170mm face with 12mm diamond laggingPL18054 – 1 off – 22kW MOTORISED DRIVE DRUM RULMECA, 630mm DIA x 950mm FACE, c/w Ceramic Lagging & synthetic oil, Belt Speed 1.6m/sec, Serial No 820987. Price: GBP£13,200
PL19665 - 1 off - 22kW MOTORISED DRIVE DRUM RULMECA, 630mm DIA x 950mm FACE, c/w Ceramic Lagging & synthetic oil, Belt Speed 1.6m/sec - Price: GBP£13,200
PL30697714 1 off - 22kW MOTORISED DRIVE DRUM RULMECA, 500mm DIA x 900mm FACE, c/w Ceramic Lagging & synthetic oil, Belt Speed 1.6m/sec - Price: GBP £7,500
PL14207 1 off – TAIL DRUM RULMECA, 500mm DIA x 1150mm FACE - Price: GBP £1,800
PL27101 4 off - TAIL DRUMS, 273mm DIA x 1140mm Flat FACE - c/w 50mm dia shaft, with 80mm long equal extensions, 1300mm overall. WH30 weld on hubs & 3020 taper locks - GBP £300 each
PL27103 4 off - HEAD DRUMS, 273mm DIA x 1140mm Crowned FACE c/w 10mm Rubber Lagging diamond pattern - c/w 50mm dia shaft, with 76.5mm none drive extension and 295mm long drive extension, having 177mm long BS Keyway, 1511.5mm overall shaft. WH30 weld on hubs & 3020 taper locks - Price: GBP £450 each
PL27105 1 off - TAIL DRUM, 273mm DIA x 1340mm Flat FACE - c/w 50mm dia shaft, with 80mm long equal extensions, 1500mm overall. WH30 weld on hubs & 3020 taper locks - Price: GBP £320
PL27102 1 off - HEAD DRUM, 273mm DIA x 1340mm Crowned FACE c/w 10mm Rubber Lagging diamond pattern - c/w 50mm dia shaft, with 77mm none drive extension and 295mm long drive extension, having 170mm long BS Keyway, 1712mm overall shaft. WH30 weld on hubs & 3020 taper locks - Price: GBP £470
REF E110082 1 off – UNUSED 30kW MOTORISED DRIVE DRUM VAN DER GRAAF, 526mm DIA x 1150mm Crowned FACE & Lagged c/w back stop. BLUE. Belt Speed, v = 2.1m/sec, 400/690v, 50Hz, serial no 04402MFS-1 - Price: GBP £9,700
REF 067138/E119571 – 1 off – UNUSED 7.5kW MOTORISED DRIVE DRUM RULMECA, 3120M, 320mm DIA x 950mm face. 380/415V, Belt Speed 1.6m/sec. 440/480V, 60Hz, Belt Speed 2m/sec. 2 stage, 2 poles c/w mounting bracket KL41 HD - Price: GBP £2,000
PL20841 1 off – UNUSED TAIL DRUM RULMECA, 400mm DIA x 950mm FACE, ref UT401H, serial no N10f6332 - Price: GBP £1,100
REF 141860 1 off – TAIL DRUM, 508mm dia x 600mm flat face c/w 50mm dia shaft, with 80mm x 40mm dia long equal extensions, 760mm overall shaft. WH30 weld on hubs & 3020 taper locks - Price: GBP£600
REF 129586 1 off – HEAD DRUM, 273mm dia x 1170mm flat face, with 12mm thick rubber lagging diamond pattern - c/w a none-drive extension 100mm long and drive extension 360mm long, turned down to 40mm dia x 180mm long, with 180mm long BS keyway, 1630mm overall shaft. WH30 weld on hubs & 3020 taper locks - Price: GBP£550
MOTORS:
PL 20463 UNUSED – 5 off – WEG 3kW motors - GBP: £90 each
PL21465 UNUSED - 1 off - SIEMENS 4.5kW 112M 400/690v, 5oHz 2905/min - GBP: £140

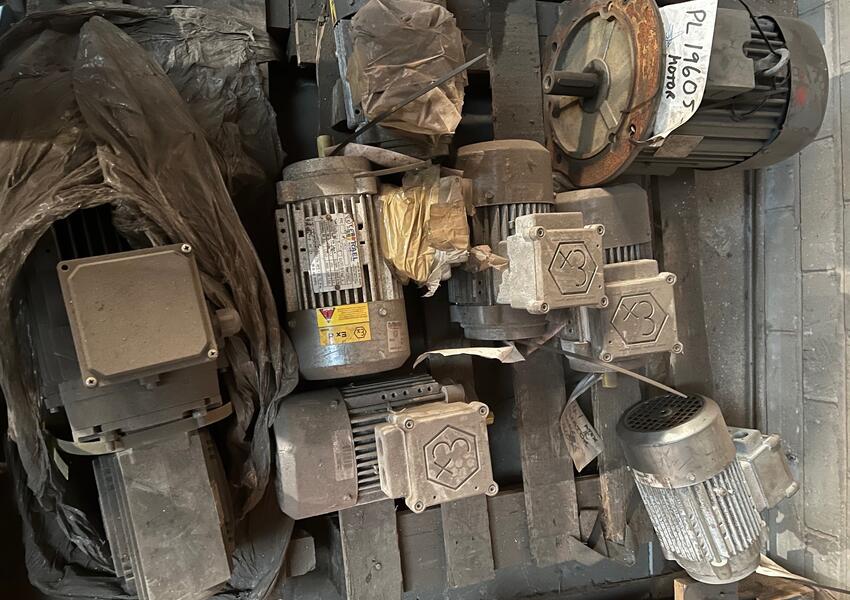

PL18336 to PL18341 – 5 off – 0.55kW Motors, 2710RPM, 50Hz - GBP: £75 each
Contact our Engineering Department for further details and visit to view, on 01909 486166 / sales@canningconveyor.co.uk
